电液动刀型闸阀安装尺寸以及外形图

电液动刀型闸阀产品概述
刀型闸阀，又称刀闸阀或刀型浆闸阀。其应用范围非常广泛，从矿山、电厂的选煤、排矸、排渣，到城市的污水处理；从水泥、造纸厂的浆液输送，到食品、卫生、医药等专业管道。超薄设计的刀型闸阀以其体积小、重量轻、阻流小、不积渣，易安装，易拆卸的优点彻底解决了普通闸阀、平板闸阀、球阀、截止阀、调节阀、蝶阀等阀门的阻流大，占空间，易积渣，不易安装和维修等疑难问题。因而大量的通用切断类阀和调节型阀门被刀型闸阀取代。
产品概述
电液动刀型闸阀通过电液联动装置往复推位来控制阀门的开启和关闭，如配置传感器或数字显示装置，可进行远距离，高空的危险地区集中或程序控制，广泛应用于冶金、电力、煤炭、矿山、水利等行业，是一种应用性强的新型更新替代产品。
技术参数范围
公称压力：0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
公称通径：DN50mm~DN2000mm NPS 2"~80"
适用温度：-38℃~1100℃（具体温度范围视密封副材质和介质性质而定）
连接法兰：ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
主体材料：C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
密封形式：硬密封、软密封
泄 漏 量：硬密封：D级（液体0.1×DNmm3/s）；软密封：A级（零泄漏）
配套附件：安装法兰
Knife Gate Valve Product Introduction
Type knife gate valve, also known as the knife gate valve or knife gate valve type pulp. Its application scope is very broad, from coal mines, power plants, slag discharge, discharging the gangue, the city sewage treatment; From the cement slurry transportation, paper mills, to food, health, medicine and other professional pipeline. Ultra-thin design type knife gate valve with its small volume, light weight, small flow resistance, no slag, easy to install, easy to remove completely solve the advantages of the common gate valve, flat gate valve, ball valve, globe valve, regulating valve, butterfly valve, choke valve, occupy a space, easy slag deposition, not easy to install and maintenance problems. So a lot of general cut off valve and external regulation valve replaced by type knife gate valve.
Product Introduction
The product controls opening and closing of valve by the reciprocating pushing effect of electric-hydraulic linkage. It can bring about centralized or programmed control distantly for high-attitude dangerous area by mounting optional sensor or digital display. It is widely used in such sectors including metallurgy, electricity generation, coal mining, mining, water conservancy, etc., representing a kind of highly practical, upgraded substitute.
Technical Parameter Range
Nominal pressure:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
Nominal diameter:DN50mm~DN2000mm NPS 2"~80"
Suitable temperature:-38℃~1100℃（Range of temperature subject to the material of sealing and property of medium）
Flange drilling:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
Main materials:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
Seal type:Stainless steel hard seal、Teflon soft seal
Leakage:Stainless steel hard seal:Grade D(Liquid0.1×DNmm3/s)、Teflon soft seal:Grade A(Zero Leakage)
Accessories:Flange

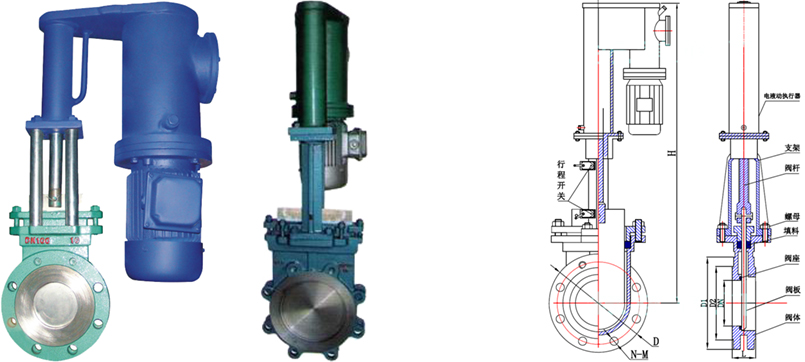

主要外形及连接尺寸Profile and connection dimension											单位Unit:mm
PN	DN	L	D	D1	D2	H	N-M	PN	DN	L	D	D1	D2	H	N-M
0.6	50	48	160	125	100	302	4-16	1.0	50	48	160	125	99	302	4-16
	65	48	180	145	120	317	4-16		65	48	185	145	120	317	4-16
	80	50	195	160	135	340	4-16		80	50	200	160	135	340	8-16
	100	50	215	180	155	378	8-16		100	50	220	180	155	378	8-16
	125	57	245	210	185	430	8-16		125	57	250	210	185	430	8-16
	150	57	280	240	210	528	8-20		150	57	285	240	210	528	8-20
	200	70	335	295	265	620	8-20		200	70	340	295	265	620	12-20
	250	70	390	350	320	771	12-20		250	70	405	355	310	771	12-22
	300	76	440	400	368	875	12-20		300	76	460	410	375	875	12-22
	350	76	500	460	428	982	16-20		350	76	520	470	435	982	16-22
	400	89	565	515	482	1245	16-22		400	89	580	525	485	1245	16-27
	450	89	615	565	532	1338	20-22		450	89	640	585	545	1338	20-27
	500	114	670	620	585	1465	20-22		500	114	715	650	609	1465	20-30
	600	114	780	725	685	1658	20-27		600	114	840	770	720	1658	20-36
	700	130	895	840	800	1900	24-27		700	130	910	840	788	1900	24-36
	800	130	1010	950	898	2400	24-30		800	130	1025	950	895	2400	24-36
	900	140	1110	1050	1005	2800	28-30		900	140	1125	1050	998	2800	28-36
	1000	216	1220	1160	1115	3000	28-30		1000	216	1255	1170	1110	3000	28-42
	1200	254	1450	1380	1325	3600	32-36		1200	254	1485	1390	1325	3600	32-48
