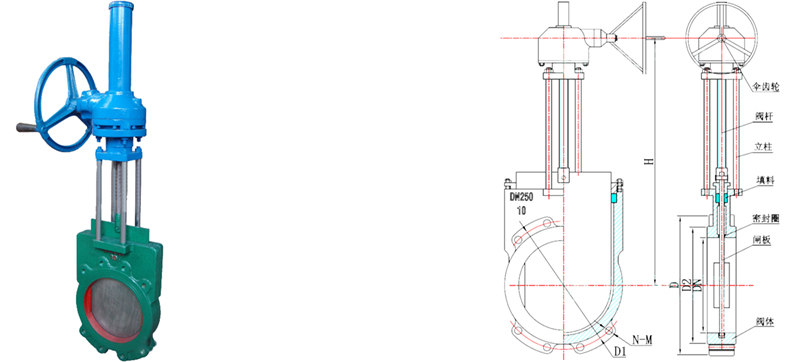

主要外形及连接尺寸Profile and connection dimension |
单位Unit:mm
|
||||||||||||||
PN | DN | L | D | D1 | D2 | H | N-M | PN | DN | L | D | D1 | D2 | H | N-M |
0.6 | 50 | 40 | 125 | 100 | 90 | 370 | 4-16 | 1.0 | 50 | 40 | 125 | 100 | 99 | 370 | 4-16 |
65 | 40 | 145 | 120 | 100 | 400 | 4-16 | 65 | 40 | 145 | 120 | 120 | 400 | 4-16 | ||
80 | 50 | 160 | 135 | 125 | 440 | 4-16 | 80 | 50 | 160 | 135 | 135 | 440 | 4-16 | ||
100 | 50 | 180 | 155 | 145 | 510 | 4-16 | 100 | 50 | 180 | 155 | 155 | 510 | 4-16 | ||
125 | 50 | 210 | 185 | 175 | 580 | 4-16 | 125 | 50 | 210 | 185 | 185 | 580 | 4-16 | ||
150 | 60 | 240 | 210 | 200 | 690 | 4-20 | 150 | 60 | 240 | 210 | 210 | 690 | 4-20 | ||
200 | 60 | 295 | 265 | 255 | 800 | 4-20 | 200 | 60 | 295 | 265 | 265 | 800 | 4-20 | ||
250 | 70 | 350 | 320 | 310 | 960 | 8-20 | 250 | 70 | 350 | 320 | 310 | 960 | 8-20 | ||
300 | 70 | 400 | 368 | 362 | 1200 | 8-20 | 300 | 80 | 400 | 368 | 375 | 1200 | 8-20 | ||
350 | 80 | 460 | 429 | 412 | 1360 | 10-20 | 350 | 90 | 460 | 429 | 435 | 1360 | 10-20 | ||
400 | 80 | 515 | 482 | 462 | 1550 | 10-22 | 400 | 120 | 515 | 482 | 485 | 1550 | 10-22 | ||
450 | 90 | 565 | 532 | 518 | 1700 | 14-22 | 450 | 120 | 565 | 532 | 545 | 1700 | 14-22 | ||
500 | 100 | 620 | 585 | 568 | 1900 | 14-22 | 500 | 130 | 620 | 585 | 609 | 1900 | 14-22 | ||
600 | 100 | 725 | 685 | 670 | 2400 | 14-27 | 600 | 140 | 725 | 685 | 720 | 2400 | 14-27 | ||
700 | 100 | 940 | 800 | 775 | 2600 | 16-27 | 700 | 140 | 940 | 800 | 788 | 2600 | 16-27 | ||
800 | 120 | 950 | 905 | 880 | 2700 | 16-27 | 800 | 150 | 950 | 905 | 898 | 2700 | 16-27 | ||
900 | 120 | 1050 | 1005 | 980 | 3100 | 20-30 | 900 | 150 | 1050 | 1005 | 998 | 3100 | 20-30 |
